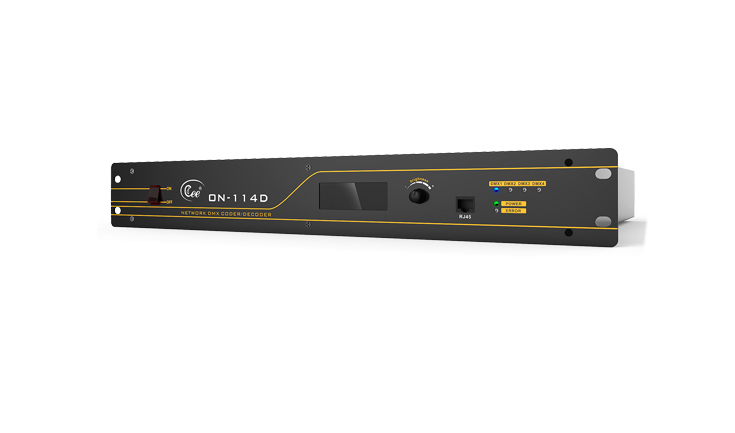

ON-114D Ethernet Network DMX Device

Update: 2015/7/15      View:
  • Brand:    Net.Do
  • Type:    ON-114D

Function  and  performance:

 ●RJ-45 network interface (can add the fiber interface),complies with IEE802.3 ether procotols,10/100M is adaptive.

 ●The Chinese liquid crystal of LCD shows the working state. and establishment, LED points out every working state.

 ●4 DMX512 interface, can set up for(network NET≥ DMX512)or DMX512 ≥ network NET)working way.

 ●Supports the network to be set up long-rang  and concentrated controlling. To after the compatible ESTA-CAN and Earthnet agreement design interface norm.

 ● DMX512 refresh rate ≤25MS.

 ●The total capacity of network≥64 groups of DMX512.

Technical  parameter

●Working voltage:AC220V±10%, 50HZ±1 HZ

●Environment temperature:-10℃~+35℃

●Relative humidity: 20%~90%

●Working environment: Ventilating well, and free from large amount of smoke and dust.

Order information:





 Network DMX Coder/The decoder
