LP-230B Moving Head Beam Light

Update: 2015/7/15      View:
  • Brand:    CEE
  • Type:    LP-230B
Technical parameter:
Lamp: YODN MSD 230 R7 (OSRAM or PHILIPS selectable)
Lamp Life: 2000 H
Lumen: 10200 lm
Color Temperature: 8000K±300K
Beam Angle: Parallel Beam Angle 0-3.9°
Power Supply: AC 100V-240V,50/60Hz
Power Consumption: 280W

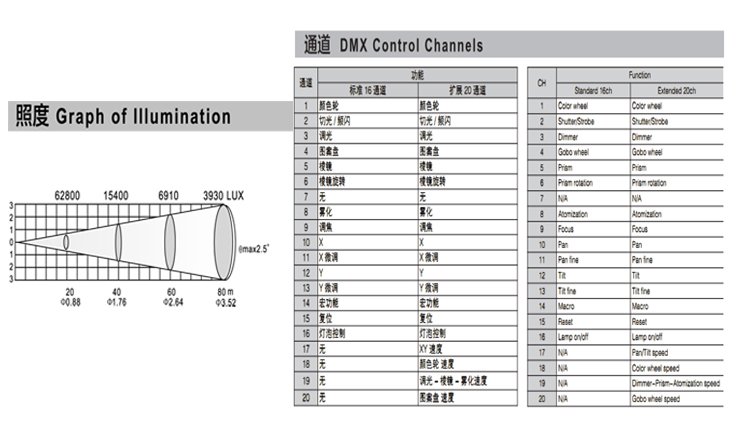

Control Signal: DMX-512 (1990)
Channel:16CH standard mode / 20ch extended mode
Movement Range: Pan 540°, 16Bit resolution, automatic position correction
Tilt 270°, 16Bit resolution, automatic position correction
Linear Dimmer: Mechanical linear dimmer 0-100%
Color Wheel: 1 fixed color wheel(14 color filters + white), linear color conversion, semi-color effect, rainbow effect in both directions
Gobo Wheel: 17 fixed gobos + white, with gobo shake function at variable speed / rotating effect in both directions
Prism: Independent 16-facet prism, prism locating function and rotating in both directions at
variable speed
Focus: Incredibly flexible linear focus
Strobe: variable strobe 1-15 flashes per second, selectable random or pulse strobe
Atomization: 0-100% linear atomization
Environment: -20℃~40℃, well ventilated
Protection Class: IP20

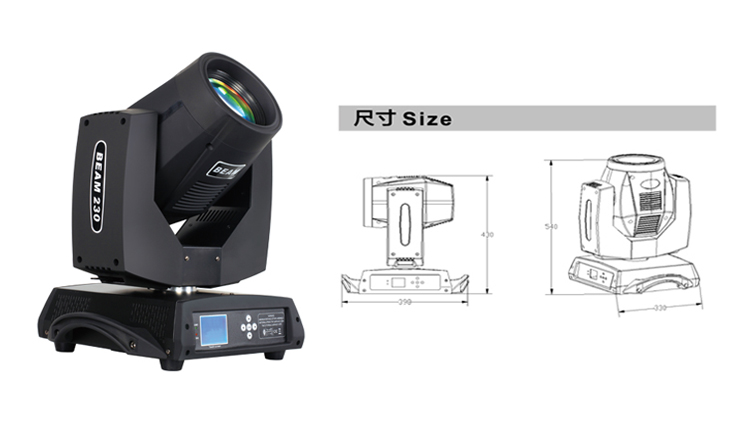

Size: 398 x 330 x 540mm

Weight: 17.3Kg
