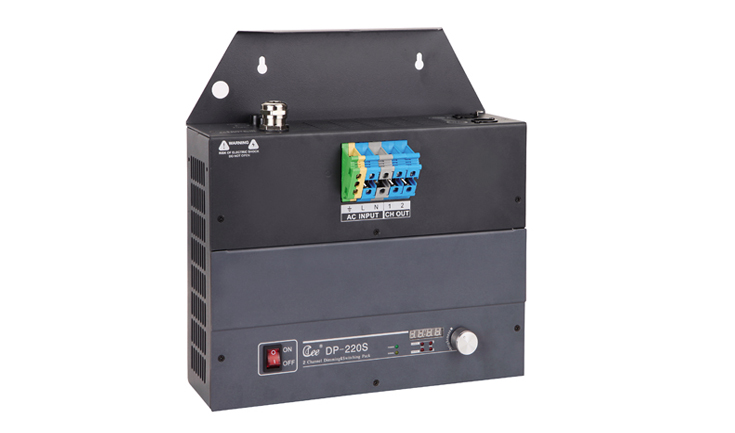

DP-220S High Power Wall-hung Type Switchbox

Update: 2015/7/15      View:
  • Brand:    Net.Do
  • Type:    DP-220S
Introduction

Function and performance:

2 channels switch control,2 channels * 20A

Power supply:AC220V±10%,50Hz±2%,single-phase three-wire power input.

Zero voltage switching action,effectively restrain relay contact spark.

Standard DMX512 signal control (1990)

High precision through zero detection technology,each channel output consistency is good.

Using wall-hung type or hanging-type installation,easy to maintain.

Bus power consumption:

Dynamic current:40mA/DC24V

Quiescent current:15 mA/DC24V

Switch circuit :12 channels

Each  switch circuit maximum current:16A

Relay contact electrical life:> 60000 times(resistance load)
