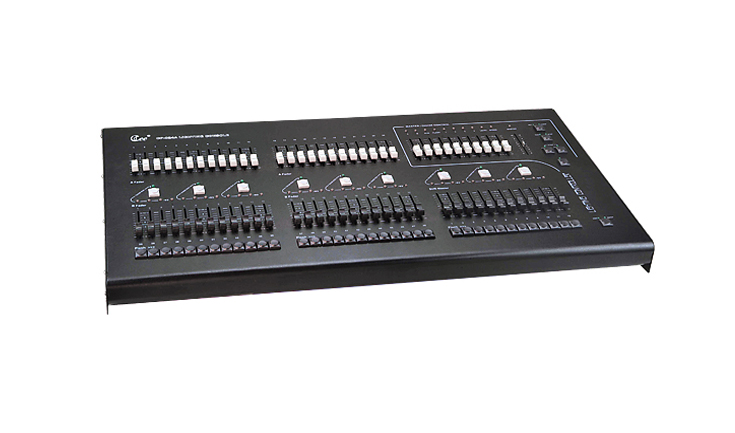

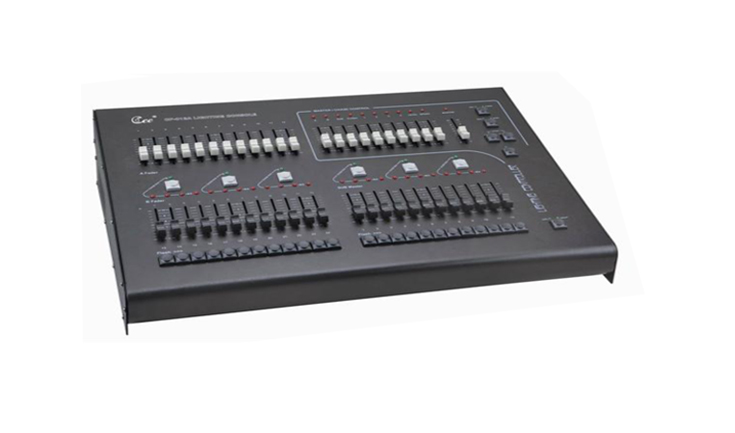

CP-12/24A、CP-24/48A Digital Dimmering Console

Update: 2015/7/16      View:
  • Brand:    CEE
  • Type:    CP-12/24A、CP-24/48A

Function and performance

●Digital/Analogy lighting console series consists of the 12/24 channels or 24/48 channels , being used in medium or small-sized performance terms or mobile recreational groups .

●ADD/SWOP two flash effects ,4 groups Preset programmable control and add A/B cue directly

●A or B cue control ,easy for user to switch scenes

●It offers ground master ,FX master A/B master and flash level

●12 sub-masters ,facilitate the operation

Technical Parameter

●Voltage: AC220V±10%,50Hz±2%

●output:DMX-512(1990)(option:0-10V analogy signal output)

●  Output channel:12,24,48

●Environmental temperature : -20℃~+45℃

●Relative hunidity:20%-90%

●Working environment: Ventilating well ,and where there is not a large amount of smoke and dust

Order information





24 faders

10submasters,4 channels controllable program



48 faders

10submasters,4 channels controllable program
